Double row bag charter sauce pouch liquid packaging machine liquid sachet filling machine

Availability:
Quantity:

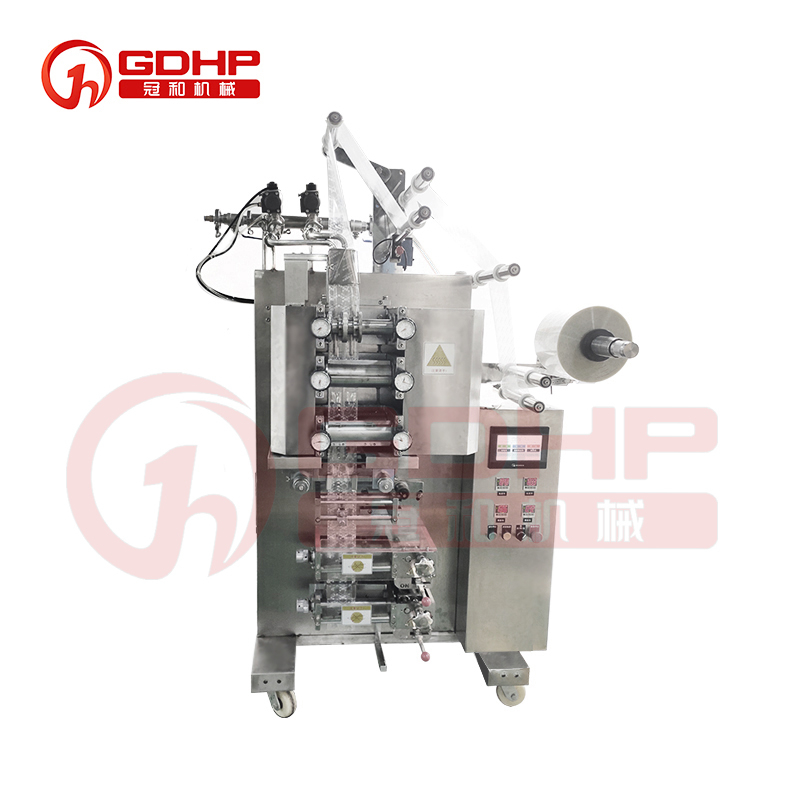

Double row bag charter sauce pouch liquid packaging machine liquid sachet filling machine
  • GDHP


Packing form: four side seal sachet

Longitudinal molded seal pattern: checkerboard pattern

Applicable bag length: 50mm-210mm

Applicable bag width: 40-100mm

Packing method: edge sealing with roller type (sealing side, top and bottom) to seal the four sides of the bag

Cutting and sealing: flat cutting between two columns: between the upper and lower bags can be written zigzag cut, or virtual cut

Capacity: 120 bags per minute

Control mode: PLC

Applicable film: PET/PE, PETAL/PE, PET /Nylon/PE, NY/PE, etc

Sealing width: 6mm on each side

Voltage 220V50HZ


Configuration:

AC contactor: Delixi

Relay: Omron

Color mark recognition sensor: Panasonic

Angle encoder: Japan Seiko

Circuit breaker; Delixi

Main motor: Hangzhou Yuqiu


liquid sachet filling machine

liquid sachet filling machine2
